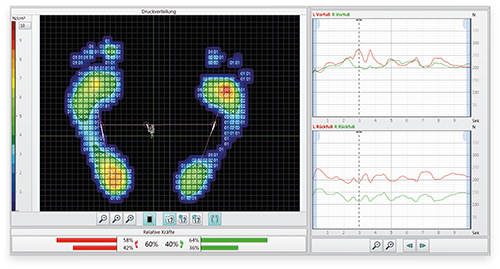

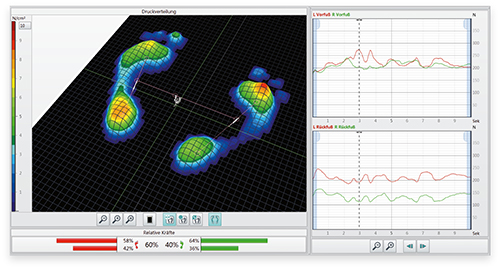

With the SCHEINWORKS pressure measuring plates, gait, stance and roll-off analyses can be carried out quickly and easily. They capture the static and dynamic pressure distribution under the feet when standing or Walking, barefoot or with shoes.

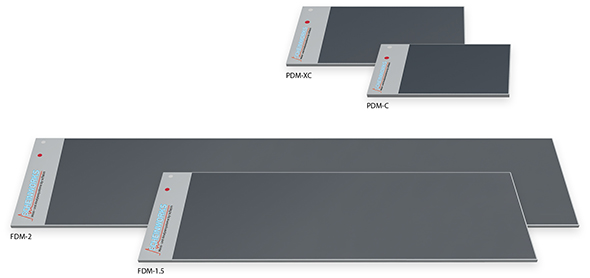

The pressure measuring plates have a low height and are available in different sizes. Maximum flexibility can be achieved with the PDM-XC and -C version, as these include both the power supply and the data transmission with the help of only one USB connection.

In order to increase the sensor area it is possible to use the measuring plates as a training course by combining two of either the FDM-1.5 and/or FDM-2 platforms of the same type with each other.

	Pressure measuring plate PDM-XC Item no. 032115200	Pressure measuring plate PDM-C Item no. 032115210	Pressure measuring plate FDM-1.5 Item no. 032115144	Pressure measuring plate FDM-2 Item no. 032115150
Dimensions (L x W x H)	54.0 x 40.,0 x 1.,5 cm	68.0 x 40.0 x 1.5 cm	158.0 x 60.5 x 2.1 cm	212.2 x 60.5 x 2.1 cm
Weight	4.9 kg	5.8 kg	approx. 16.5 kg	approx. 25 kg
Sensor area (L x W)	40.6 x 33.9 cm	54.2 x 33.9 cm	144.0 x 56.0 cm	203.0 x 56.0 cm
No. of sensors	1920	2560	11264	15360
Resolution	1.4 sensors/cm² (1/3")	1.4 sensors/cm² (1/3")	1.4 sensors/cm² (1/3")	1.4 sensors/cm² (1/3")
Measurement frequency	120 Hz	120 Hz	100 Hz, optional 200 Hz or 300 Hz	100 Hz, optional 200 Hz or 300 Hz
Measuring range	1–120 N/cm²	1–120 N/cm²	1–120 N/cm²	1–120 N/cm²
Precision	±5 % of final value	±5 % of final value	±5 % of final value	±5 % of final value
Sensor type	capacitive	capacitive	capacitive	capacitive
PC interface	USB 2.0	USB 2.0	USB 2.0	USB 2.0/ Bluetooth
