Our Insole blanks > Novaped Plateau

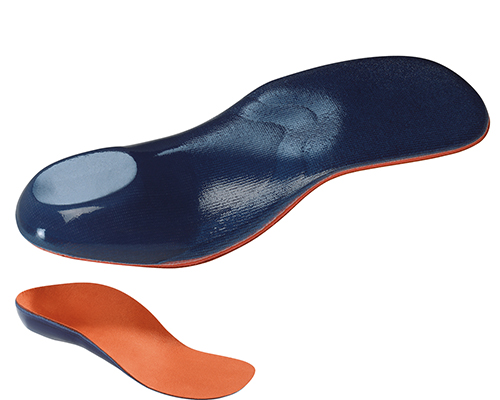

Orthopaedic foot supports with heel plateau
Effective treatment
The Novaped plateau orthopaedic foot supports offer maximum stability together with optimal comfort.
With its extended support surface, the heel plateau provides stability and improves transmission of force onto the sole of the shoe. The heel plateau also features an integrated rolling edge that supports controlled step initiation, thus reducing the speed of pronation.

General
Novaped plateau orthopaedic foot supports:
  • Can be thermoplastically moulded

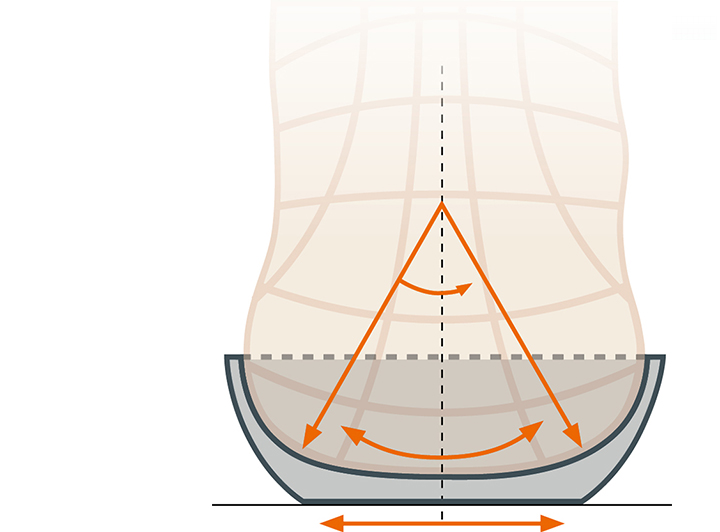

ROUND ON THE INSIDE
The rounded heel and the cupped design provide a perfect fit for the foot. This is beneficial for pressure distribution and ensures the desired treatment result while also being comfortable to wear.

STRAIGHT ON THE OUTSIDE
With its extended support surface, the heel plateau stops the insole from rocking and, at the same time, improves transmission of force from the insole onto the sole of the shoe.


FREEDOM TO ADJUST
Pronating and supinating corrections can be made directly on the plateau (without the need for additional material).


CONTROLLED STEP INITIATION
The integrated rolling edge aid‘s controlled step initiation.


STABILISED TREAD FROM 3 TO 4 point principle
  • Extended heel support surface on the sole of the shoe
  • Increases pressure distribution when standing in the shoe
  • Prevents the insole from rocking in the shoe
  • Stabilises the ankle joint and reduces possible pronation speed when walking




SUPPORTING ORTHOPAEDIC INSOLES WITH HEEL PLATEAU
They are manufactured using the tried-and-tested ‘film technique’ . The special sandwich construction gives the insoles a low mounting height, flexible stability and soft, stable edges.

The thin construction means the finished plateau insoles will fit into ready made shoes with ease.

Thermal mouldability at 100° C allows additional customisation by healthcare technicians.

Art. no. Description Size
959310000 Novaped plateau base 35–48
959312000 Novaped plateau, 2 mm p2 resorb padding and perforated OnDry cover 35–48


CUSHIONING ORTHOPAEDIC FOOT SUPPORTS WITH HEEL PLATEAU
They are manufactured with a multi-zone technique on the insole base. The rearfoot is made of a cork composite and provides stability, while the shock-absorbing forefoot provides relief for the metatarsals.

The heel plateau integrated into the rearfoot allows freedom for pronation and supination corrections.


Art. no. Description Size
959322000 Novaped plateau mit geteiltem Unterbau (Multikork/Multiform), 2 mm Multiform, beige, verstärkte OnDry Decke, anperforiert 35–48


CUPPED ORTHOPAEDIC FOOT SUPPORTS WITH HEEL PLATEAU
They offer a high level of comfort and support, and can correct foot malpositions with professional further processing.

For optimal treatment results, it is important that the foot, insole and shoe are perfectly harmonised.

The orthopaedic foot support can be thermally moulded at 100° C.


Art. no. Description Width Size

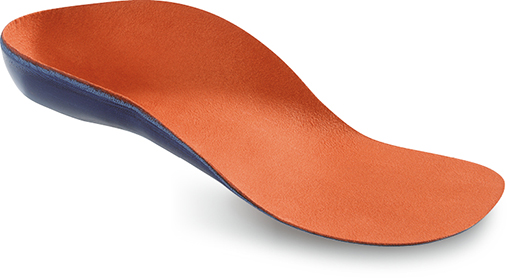

980189000 Novaped plateau with PiGreco cover, cupped shape Medium 19/20, 33/34, 35–48

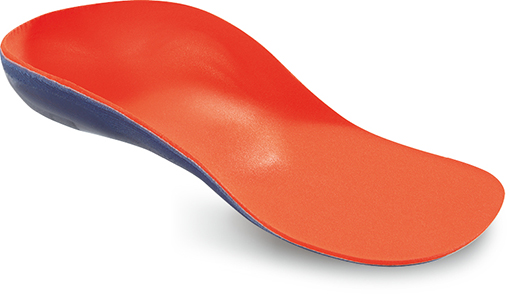

980260000 Novaped plateau with 2 mm Multiform, cupped shape Wide 19/20, 33/34, 35–42

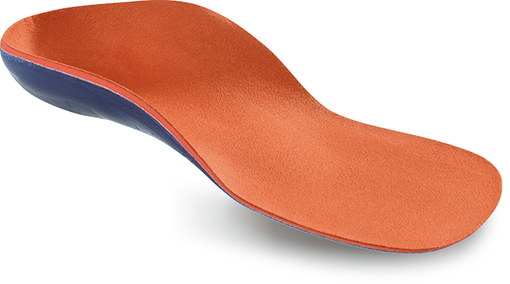

980360000 Novaped plateau with 2 mm Multiform and PiGreco cover, cupped shape Narrow 19/20, 33/34, 35–47
