Our Insole blanks > Novaped calcaneus

Novaped calcaneus


The NovaPED calcaneus series has been specially designed for use in case of overload symptoms or pain in the area of the calcaneus/plantar tendon attachment.

The NovaPED S90 calcaneus orthopaedic foot supports are preformed from a thermoplastic material and, in addition to an anatomically adapted recess in the middle of the heel, also have a lowering of the plantar tendon structure.

The use of glass-fibre-reinforced components increases the stability in the longitudinal arch, while PU padding materials in the heel have a shock-absorbing and pressure-relieving effect. Another special feature is the multi-zone technology in the cover combination. The cushioning top layer with soft-bedding heel inlay supports and relieves the foot structure in a targeted way.

The multi-zone technology is also used in the NovaPED soft calcaneus orthopaedic foot supports. The base made of Multiforte provides the form and is functionally equipped through the use of pressure-relieving or absorbent PU materials.

The blanks of the NovaPED calcaneus series can be thermally formed/shaped/milled and are intended for further processing by a healthcare technician.





Novaped S90 calcaneus

Novaped S90 calcaneus business


  • Supporting insoles produced using the film technique
  • Glass-fibre-reinforced plastic core
  • Lowering of the plantar tendon structure
  • Heel padding made of PU cushioning elements (p² resorb/PX absorb)
  • Anatomical rubber padding
  • OnDry cover, dark grey, embossed
  • Can be thermally moulded


Artikel-Nr. Beschriebung Größe
989818000 Novaped S90 calcaneus business 35 - 50
989818174 Novaped S90 calcaneus business, loose cover 35 - 50

Novaped S90 calcaneus Sneaker

Artikel-Nr. Beschriebung Größe
989820000 Novaped S90 calcaneus Sneaker 35 - 50
989820174 Novaped S90 calcaneus Sneaker, loose cover 35 - 50

Novaped soft calcaneus

Novaped soft calcaneus resorb soft

  • Bedding orthopaedic foot supports produced using soft cushioning technique (p² resorb)
  • Base in Multiforte multi-zone technique (Multiforte/p² resorb)
  • Especially soft heel impact zone
  • Reinforcing intermediate layer made of THK (windowed)
  • Shaped soft pad
  • Long-soled Multiform padding in a multi-zone technique, 4 mm
  • OnDry cover, dark grey, embossed
  • Can be thermally shaped
Artikel-Nr. Beschriebung Größe
979828000 Novaped soft calcaneus resorb soft 35 - 50

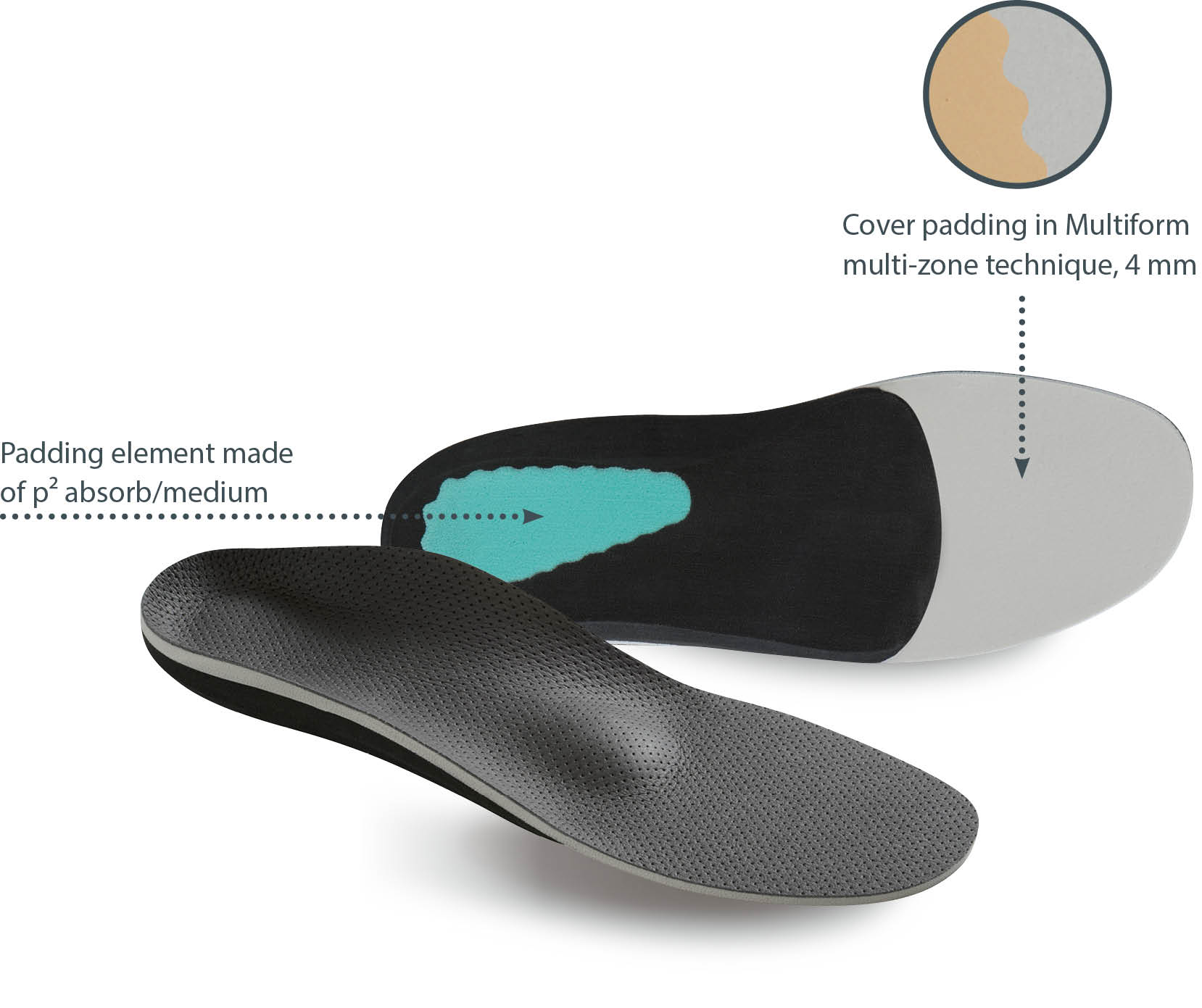

Novaped SOFT cacaneus absorb medium

  • Bedding orthopaedic foot supports produced using soft cushioning technique (p² absorb)
  • Base in Multiforte multi-zone technique (Multiforte/p² absorb)
  • Energy-absorbing heel padding
  • Reinforcing intermediate layer made of THK (windowed)
  • Shaped soft pad
  • Long-soled Multiform padding in a multi-zone technique, 4 mm
  • OnDry cover, dark grey, embossed
  • Can be thermally shaped
Artikel-Nr. Beschriebung Größe
979825000 Novaped soft calcaneus absorb medium 35 - 50
